Intermatic® Electronic Time Switch (240V)

Price: $77.95

Brand Intermatic
Item Number EE92
Model Number EH40
Power Requirements 240 volts AC, 60 Hz
Estimated Savings

Estimated Product Savings

Kilowatt Hours Saved

66 per year
986 life of product

Dollars Saved

$7.75 per year
$116.29 life of product

Gallons of Water Saved

0 per year
0 life of product

Trees Planted

0 per year
1 life of product
Full Details

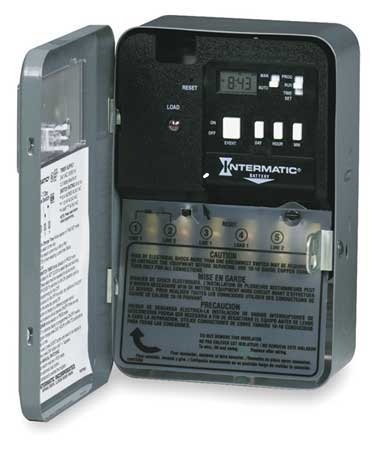

This time switch provides automatic control for 240 volt electric water heaters. It provides to the minute accuracy in programming and time keeping. The time switch can be programmed for repeat daily scheduling, 5 day work week scheduling, weekend scheduling or any individual day scheduling. The timer can be scheduled for operation during the lowest time of day rates or to switch off the electric heater during period of utilities peak power usage. The time switch can be set to operate for up to 6 on/off operations daily for a maximum of 42 on/off operations weekly. It provides a convenient external override switch and LED load indicator for ease in scheduling hot water as required for extra hot water demands. The timer includes a battery carryover which protects both time keeping and program information for a minimum of 3 years. The enclosure is NEMA 1 lockable steel which is painted with an electrostatic process to eliminate the potential for corrosion. The time switch enclosure provides 31 cubic inches of wiring space and has a non-removable cover which swings open a full 180 degrees. It offers clear terminal identification on a see through non-curling terminal insulator. Terminal connections are made using teeter type terminal screws to provide secure connections for wire sizes up to #10 AWG.

Specs and Features
Amperage Capacity 30 amps inductive/resistive
Brand Intermatic
Capacity (HP) 1.5 HP
Certifications UL, CSA
ENERGY STAR Qualified No
Item Number EE92
Model Number EH40
Origin China
Packaging English (English & Spanish instructions included)
Power Requirements 240 volts AC, 60 Hz
Warranty 1 year
Wattage 7,200 watts
